Car Audio Entertainment

Blaupunkt In-Car Entertainment

XLf 180A | Blaupunkt Velocity Power Active Subwoofer

Amplifier Technology : AB
Normal Output Power (RMS) : 180 Watts
Max Output / Peak Power : 400 Watts
Speaker Input : 0.6V-12V
Signal / Noise Ratio : >91dB
Output Impedance : 2
Frequency Response :
30Hz-150Hz
low Pass Filter (LPF) : 30Hz-150Hz
Voltage : 14.4 V (range 10V-16V)
Phase Switch : 0 ํ / 180 ํ
Automatic On/Off : High Level Input Only
Fuse Rating : 25A
Variable Bass Boost : 0dB-18dB

XLf 150A | Blaupunkt Velocity Power Active Subwoofer

Amplifier Technology : AB
Normal Output Power (RMS) : 150 Watts
Max Output / Peak Power : 330 Watts
Speaker Input : 1.0V
Signal / Noise Ratio : >90dB
Output Impedance : 4
Frequency Response :
20Hz-150Hz
low Pass Filter (LPF) : 50Hz-100Hz
Voltage : 14.4 V (range 10V-16V)
Phase Switch : 0 ํ / 180 ํ
Automatic On/Off : High Level Input Only
Fuse Rating : 10A
Variable Bass Boost : 0dB-+128dB

GTx 1662 C20 | Blaupunkt 2-Way Component Speakers

Max Output Power : 80 Watts
RMS Power Handling : 30 Watts
Impedance : 3.6ohms
Frequency Response (± 3db in car) :
58Hz-20,000Hz
Sensitivity (1w/1m) : 89dB
Mounting Depth : 59mm
Diameter hole : 165mm

GTx 1662 C25 | Blaupunkt 2-Way Component Speakers

Max Output Power : 120 Watts
RMS Power Handling : 50 Watts
Impedance : 2.8ohms
Frequency Response (± 3db in car) :
69Hz-10,000Hz
Sensitivity (1w/1m) : 99dB
Mounting Depth : 60mm
Diameter hole : 165mm

Pair of 6.6″ 2-way quadapixel speakers with PP injected cone including mounting hardware

Max Output Power : 120 Watts
Normal Output Power (RMS) : 30 Watts
Impedance : 4 ohms
Frequency Response :
75Hz-20,000Hz
Sensitivity : 89dB
Mounting Depth : 56mm
Diameter hole : 158mm
Surround : Rubber

Pair of 6.6″ 4-way quadapixel speakers with PP injected cone including mounting hardware

Max Output Power : 100 Watts
Normal Output Power (RMS) : 30 Watts
Impedance : 4 ohms
Frequency Response :
65Hz-20,000Hz
Sensitivity : 88dB
Mounting Depth : 46mm
Diameter hole : 158mm
Surround : Rubber

Pair of 6″x9″ 4-way quadapixel speakers with PP injected cone including mounting hardware

Max Output Power : 120 Watts
Normal Output Power (RMS) : 40 Watts
Impedance : 4 ohms
Frequency Response :
65Hz-20,000Hz
Sensitivity : 88dB
Mounting Depth : 82.1mm
Diameter hole : 167x121mm
Surround : Rubber

Blaupunkt Car Radio Barcelona 240T

Tuner
– Wave Bands : FM , AM
– Universal Switchable Tune via Menu : Europe, America, Thailand
– 18 FM Station Memory, 12 AM Station Memory
Data Carrier

– DVD, +/-R/RW, -ROM, VCD, CD-DA
– USB 2.0, MicroSD
– Frequency Response : 15Hz > 15kHz – 3dB
– Output Formats : Setting Options NTFS, PAL
Amplifier
– 4×50 watts Max. Output Power
Media Player
– Audio Format Supported : CDA, MP3, WMA
– Video Format Supported : AVI, DAT, DVX, DIVX, MPEG, MP4, XVID, H.264
– Image Format Supported : JPEG, JPG
Bluetooth
– Built-in/External Microphone
– Bluetooth 4.0 with EDR, HFP, A2DP, rSAP
– On-Screen Caller ID
Inputs/Outputs
– 2 x AUX – in : 3.5mm Jack
– 2 x Video Outputs
– 1 x Audi Input & Output
Accessories
– Remote Control



Blaupunkt Car Radio Florida 4020T

Tuner
– Wave Bands : FM , AM
– Universal Switchable Tune via Menu : Europe, America, Thailand
– 18 FM Station Memory, 12 AM Station Memory
Data Carrier

– DVD, +/-R/RW, -ROM, VCD, CD-DA
– USB 2.0, MicroSD
– Frequency Response : 15Hz > 15kHz – 3dB
– Output Formats : Setting Options NTFS, PAL
Amplifier
– 4×50 watts Max. Output Power
Media Player
– Audio Format Supported : CDA, MP3, WMA
– Video Format Supported : AVI, DAT, DVX, DIVX, MPEG, MP4, XVID, H.264
– Image Format Supported : JPEG, JPG
Bluetooth
– Built-in/External Microphone
– Bluetooth 4.0 with EDR, HFP, A2DP, rSAP
– On-Screen Caller ID
Inputs/Outputs
– 2 x AUX – in : 3.5mm Jack
– 2 x Video Outputs
– 1 x Audi Input & Output
Accessories
– Remote Control



HOKKAIDO 100T

Display
– Blue Display key with LED blacklight
– Fixed Panel
Tuner
– 18 FM preset station
– Local seek tuning
Data Carrier

– USB 2.0, MicroSD (Up to 32GB)
Audio
– 4×50 watts Built-in Amplifier
– Max Output Power
– RCA Rear Pre-Out
– Preset Equalizer
– Input Power : 12-14.5V
– Current Consumption : 200mA (Standby mode), 6.0A (Max Current
  Consumption)
Media Playback
– MP3 / WMA Playback
– USb 2.0 / SD Playback
– SDHC (Support up to 32GB)
– Front Aux input
– Support ID-3 Tag
– Bluetooth
– Built-in Microphone
Bluetooth
– Bluetooth 4.0
– EDR, HPF, HSP
– On-Screen Caller ID
– 1 x Device Pairing
Inputs/Outputs
– 1 x Front AUX – in
– 1 x Audio Input & Output
– 1 x Built-Input Microphone
Accessories
– Remote Control



LOS ANGELES 520T

Display
– 6.95” Capacitive Touch Screen Display
– Resolution : 800 x 480 pixels
– Adjustable Brightness
– Clock / Date Display
– Clock Mode : 24 / 12 Hours
– Wallpaper Options
– System Languages : English, Chinese, Arabic, French, Italian, Indonesia
Radio
– Switchable World Tuner : Europe, America, Thailand
– Wave Bands : 18FM, 12AM
– Travelstore : FM, AM
– Band Scan / Preset Scan
– Select via frequency scale
– Frequency Response (hz) – 3dB : 20-15,000
Phonelink (Android Smartphone only)
– Smartphone Mirroring 1-way for iOS 12.4
– Smartphone Touch Control 2-Way up to Android 9
Bluetooth
– Bluetooth 4.2 EDR
– Supported Profiles : HFP, PBAP, A2DP, SPP
– 1 x Device Pairing
– Hands-Free Calling via Micro + Radio Speaker
– Key Function : Accept / Hang Up / Reject Call Phone Book Access (Up To
  1 000 Entries By Phone)
– History Call Lists (Missed, Dialled, Received Calls)
– Auto Synchronisation (On/Off)
– Auto Connect / Auto Answer (On/Off) / (On/Off)
– Built-in Microphone
Data Carrier
– DVD, +/-R, +/-RW, -ROM
– VCD
– CD, -ROM, -R/-RW
– Shock Proof-drive : CD/DVD
– Frequency Response (Hz) -3dB : 20-20,000
– USB 2.0 Compatible (Removable Storage)
– Micro SD (Support up to 64GB, not included)
– Storage Formats : NTFS, FAT, FAT 16, FAT 32
Amplifier
– 4 x 50-Watt Max. Output Power
– Sinus Power at 14.4V

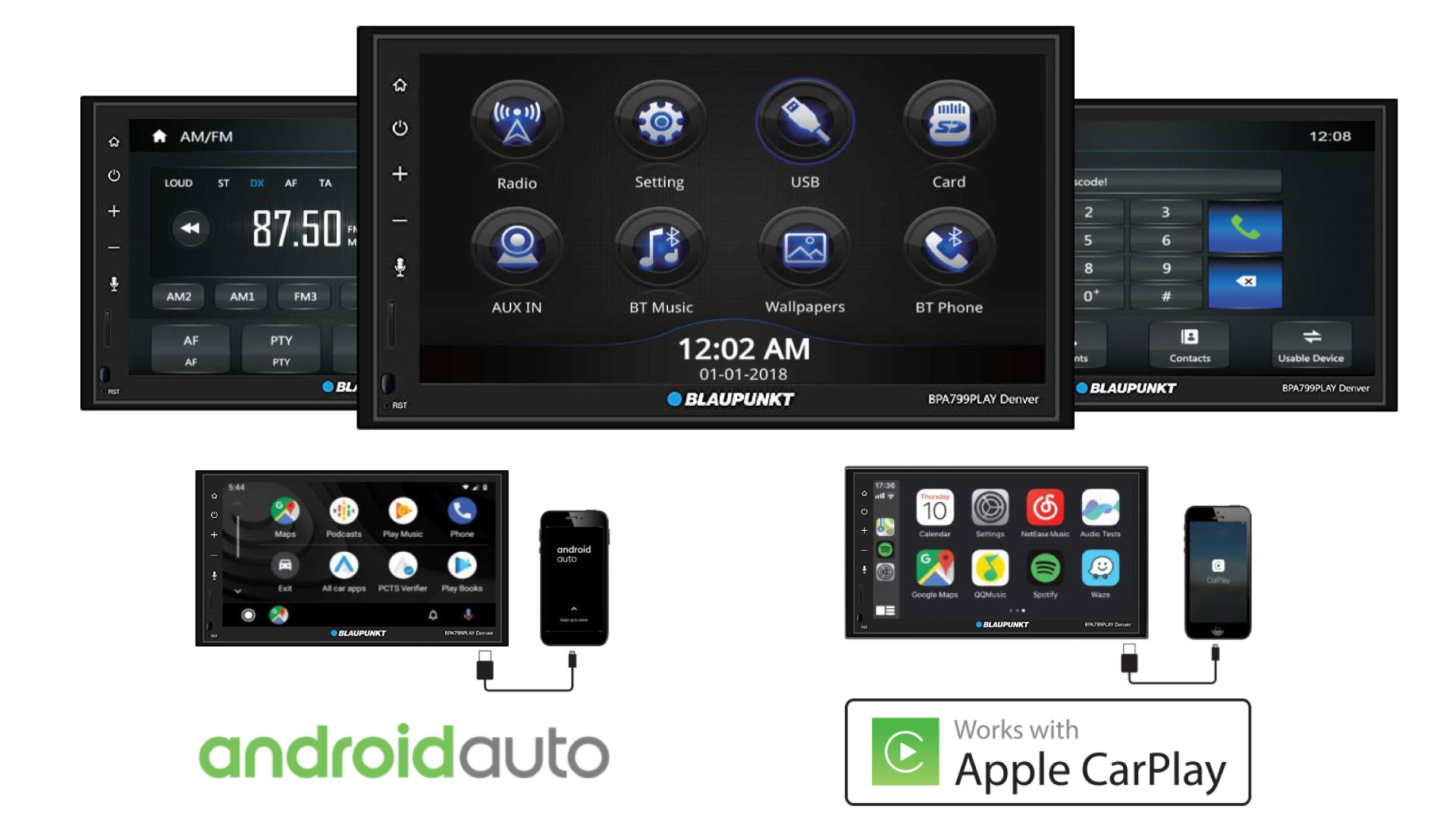

BPA799PLAY DENVER



Display
–  6.8” Capacitive Display | FM | Bluetooth | SWC
Tuner
– Wave Bands : FM, AM
– Universal Switchable Tuner via menu; Europe, America, Japan
– 18 FM Station Memory
– 12 AM Station Memory
Media Player
– USB 2.0 (up to 32GB)
– MicroSD card (up to 32GB)
– Audio Format Supported: MP3, FLAC
– Video Format Supported : AVI, DAT,MP4, MPEG, MPG, RMVB
– Image Format Supported : JPEG, JPG
Equalizer / Amplifier
– Flat / Pop / Rock / Electro / Jazz / Classic
– 4 x 50W max output power
Phonelink (Android Smartphone only)
– Carplay™ & Android Auto™ |
– Support iPhone (iPhone 6s and above)
– Support Android Phone (Android Ver.5.0 and above)
Input / Output
– 1x microSD (Front)
– 1x AUX-In : 3.5mm jack (Rear)
– 1x USB input (Rear)
– 1x Video Outputs
– 1x Audio Output
– 1x AV Input (Rear)
– 1x Rear camera input
– 1x External microphone Input
Bluetooth
– External Microphone
– Bluetooth 4.2, HPF, PBAP,
A2DP, SPP, HSP
• On Screen caller ID
• Support phone book function
Accessories
– Remote Control
– User Manual
– Connecting Cables



LASVEGAS 900&1000DSP


Display

– 9.0″ & 10.0″  IPS Screen Panel
– 2.SD Edge Glass
-1280x720p Resolution
Tuner
– 18 FM and 12 AM Preset Station
– Local Seek Tuning
Media Player
– USB 2.0
– Audio Format Supported: MP3, FLAC
– Video Format Supported: AVI, MP4
– Image Format Supported: JPG
Equalizer / Amplifier
– Cinema/ Surround/ Bass/ SE/ Classic/Jazz/ Rock/ Popular
– 4 x 50W max output power
Input / Output
– 4x Audio Channel
– 1 x RCA Rear View Video Camera Input
– 2x Pre-out Channel
– 2x Rear USB
– lx Rear Aux-in
– lx Video-out
– lx Video-In
– Steering Wheel Control Input GPS Antenna Input
Phonelink
– 1- way iOS Mirroring via USB Cable
– 2- way Android Mirroring and Touch Control via USB Cable
Bluetooth
– Support External Microphone Supported Profiles : HFP, PBAP, A2DP,AVRCP,HSP,SPP
– 1 x Device Pairing
– Hands-Free Calling
– Key Function : Accept / Hang Up / Reject Call
– Phone Book Access
– History Call Lists (Missed, Dialled, Received Calls)
– Auto Synchronisation (On/Off) Auto Connect (On/Off)
– Auto Answer (On/Off)
Accessories
– User Manual
– Connector Cable Sets + RCA Connectors USB Harness
– GPS Antenna
– External Microphone



NEW ORLEANS 900&1000DSP


Display

– 9.0″ & 10.0″  IPS Screen Panel
-1280x720p Resolution
-4GB+6GB, 8-CORE
Tuner
– 18 FM and 12 AM Preset Station
Supper RDS
– Local Seek Tuning
Media Player
– USB 2.0
– Audio Format Supported: MP3, FLAC
– Video Format Supported: AVI, MP4
– Image Format Supported: JPG
Equalizer / Amplifier
– Cinema/ Surround/ Bass/ SE/ Classic/Jazz/ Rock/ Popular
– 4 x 50W max output power
48-Band Equalizer
Built-in DSP
Time Alignment

Input / Output

– 2x channel audio-in
– 2x channel audio-out
– 1x rear camera input
– 2x rear USB
– 1x video-out
– 1x video-in
– 1x HDMI output
– Steering wheel control
– GPS antenna input
– 4G antenna
– Suppot 360 AVM (optional)
– Support SPDIF (optical) output
– Support coaxial output
– Support 5.1 channel output

Phonelink
– 1- way iOS Mirroring via USB Cable
– 2- way Android Mirroring and Touch Control via USB Cable
Bluetooth

– Support external microphone
– Profiles : HFP, PBAP, A2DP, AVRCP, HSP, SPP
– 1x device pairing
– Hands-free calling
– Key function : Accept / hang up / reject call
– Phone book access
– History call lists (missed, dialled, receive calls)
– Auto sync
– Auto connect
– Auto answer

Accessories
– User Manual
– Connector Cable Sets + RCA Connectors USB Harness

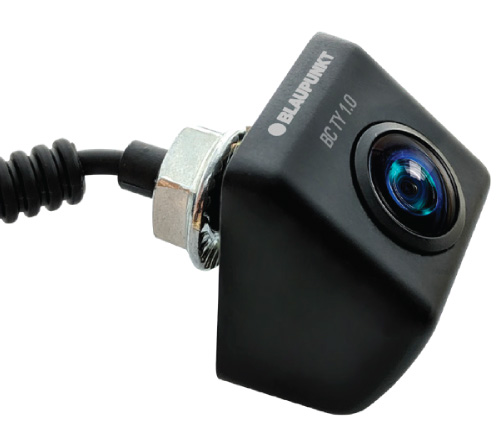

REVERSE CAMERA BC TY 1.0

170 ํ Ultra Wide Angle Excellent Night View Water-resistant

Description
– BC TY 1.0 BC
Fitting
– Original Equipment
Front Camera-ready
– Yes
Image Sensor
– CMOS
Horizontal Pixel
– 720
Vertical Pixel
– 480
Image Resolution (TVL)
– 750
Diagonal View
– 170 ํ
Horizontal View
– 160 ํ
Vertical View
– 140 ํ
Operating Voltage DC
– DC 12V (9-16V)
Water Resistant
– IP68
Glasses 5 6 5 4 4
– 5

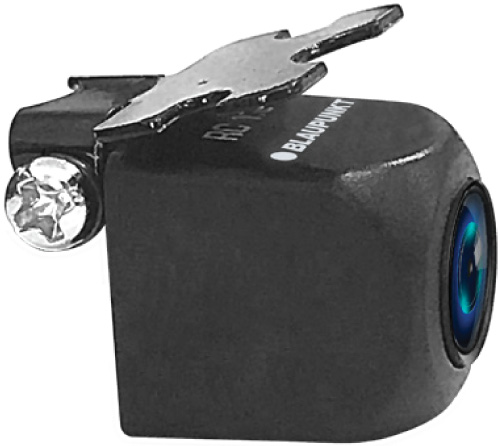

REVERSE CAMERA RC 1.0

170 ํ Ultra Wide Angle Excellent Night View Water-resistant

Description
– RC 1.0
Fitting
– Universal
Front Camera-ready
– Yes
Image Sensor
– CMOS
Horizontal Pixel
– 720
Vertical Pixel
– 480
Image Resolution (TVL)
– 750
Diagonal View
– 170 ํ
Horizontal View
– 105 ํ
Vertical View
– 95 ํ
Operating Voltage DC
– DC 12V (9-16V)
Water Resistant
– IP68
Glasses 5 6 5 4 4
– 4

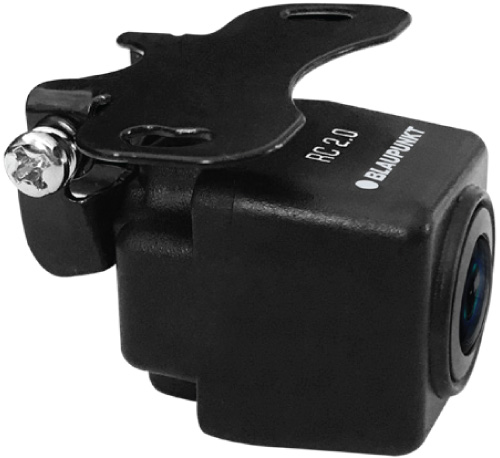

REVERSE CAMERA RC 2.0

170 ํ Ultra Wide Angle Excellent Night View Water-resistant

Description
– RC 2.0
Fitting
– Universal
Front Camera-ready
– Yes
Image Sensor
– CMOS
Horizontal Pixel
– 720
Vertical Pixel
– 480
Image Resolution (TVL)
– 750
Diagonal View
– 170 ํ
Horizontal View
– 145 ํ
Vertical View
– 125 ํ
Operating Voltage DC
– DC 12V (9-16V)
Water Resistant
– IP68
Glasses 5 6 5 4 4
– 4



CH RCA Cable – RC1

Gold-plated RCA connector for better signal transfer

Copper Conductor , PVc Jacket , 100% OFC (Oxygen Full copper) ,
10 x 0.12 x CU + AL + 2C x 2F , OD : 4x8mm

– RC1-05S (0.5m/1.6ft)
– RC1-12S (1.2m/3.9ft)
– RC1-20S (2.0m/6.6ft)
– RC1-50S (5.0m/16.4ft)





CH RCA Cable – RC2

Gold-plated RCA connector for better signal transfer

Copper Conductor , PVC Jacket , 100% OFC (Oxygen Full copper) , Inner core : 0.09mm x 66pcs , OD : 5.6mm

– RC2-05S (0.5m/1.6ft)
– RC2-12S (1.2m/3.9ft)
– RC2-20S (2.0m/6.6ft)
– RC2-50S (5.0m/16.4ft)





Get In Touch

บริษัท เตชินท์ อินเตอร์เทรด จำกัด (สำนักงานใหญ่)

บริษัท เตชินท์ อินเตอร์เทรด จำกัด
( สำนักงานใหญ่ )

ที่อยู่

เลขที่ 3 ซอยเทียนทะเล 26 แยก 2  ถนนบางขุนเทียน-ชายทะเล ท่าข้าม  เขตบางขุนเทียน กรุงเทพฯ 10150



Email

blaupunkt-thailand@gmail.com

เบอร์ติดต่อ

Office : +662 897 3231
Fax : +662 416 5557

Social & Chat

Facebook : @BLAUPUNKT.Thailand.Official
Line : @blaupunkt.th

Send A Message
